WaveData

Features WaveData

WaveData is a controller and data analysis application for the WaveGo handheld spectral light meter which uses a high resolution spectrometer to provide light measurements for lighting applications.

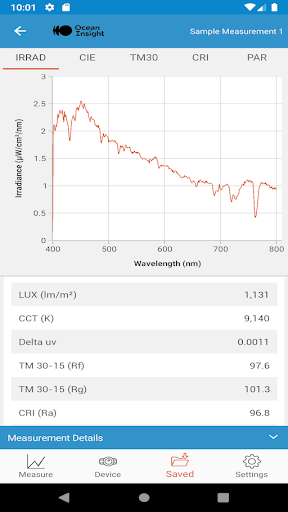

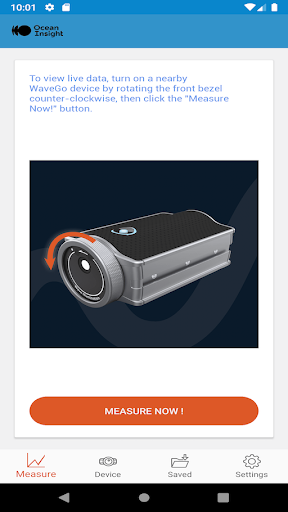

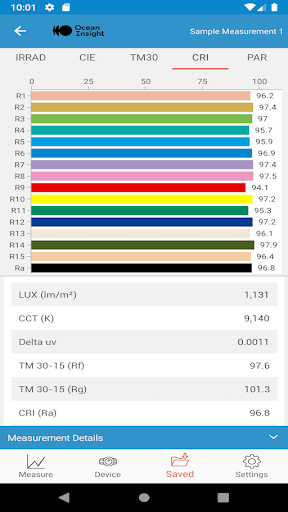

Supported Devices - WaveGo-VIS-50 (FW ≥ 1.0.3) Features - Connect to WaveGo via Bluetooth - Spectral data & analysis from 400 to 800nm - Key light measurements graphically displayed - View real-time data or saved measurements - Automated measurement scheduler for data logging - Saved files include GPS coordinates, UTC time stamp - PDF Reports and CSV data files - Accelerometer for orientation data Measurements - Irradiance (µW/cm2/nm) - Lux, CRI (Ra, R1 – R15), CCT, TM30 - Delta UV, Dominant, Peak Wavelengths - Chromaticity x, y - Melanopic Lux (EML), blue Intensity, Circadian Stimulus - Flicker (Hz, %) - PAR (PPFD), Est.
DLI, PFD-Blue, Green, Red, Far Red (Irr., ratio)
